Easy WebLogic Monitoring

Ensure availability of business critical application servers
Alert on potential user experience and transaction performance problems
Understand the correlation between system performance and application server behaviour
Quickly profile and diagnose application/database issues

Screenshots

WebLogic Report

Click here to view

Why is up.time your answer for monitoring WebLogic?

Use up.time to let you know when application response time degrades and to detect problems before they affect your end users or impact service levels.

Combine our detailed system performance metrics with connection pool, JVM, EJB, and servlet metrics to quickly identify potential performance problems in your J2EE environment.

up.time is ideal for characterizing the behaviour of an application in a development/QA environment; and then how it performs once deployed in a production environment.

WebLogic Support in up.time 4

up.time 4 enables you to monitor the performance and health of J2EE/Java applications that are running on a WebLogic server. up.time 4 currently supports versions 8.1 and 9.2 of WebLogic on any platform.

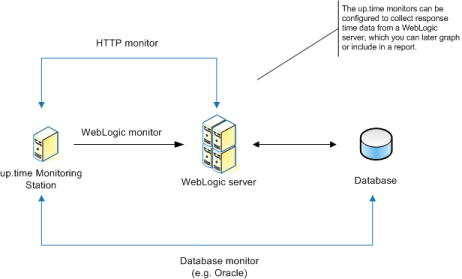

You can now identify correlations between system performance and the J2EE application server, track end-user and database response times, and a number of other statistics for a WebLogic server. The diagram below shows how you can profile the many components of a J2EE environment and analyze the performance data to identify tuning opportunities, possible issues with application code, end-user response time problems, and database throughput.

WebLogic monitoring

Performance Metrics

In addition to the WebLogic metrics that up.time 4 collects, detailed system level performance metrics are also available. This enables you to analyze system compute performance, memory usage, disk and network performance, and then relate underlying system behavior to specific metrics within WebLogic. You can also use the information that up.time collects to generate reports that chart the historical performance of the server and the applications that are running on it.

Connection Pool Metrics

The following metrics contain performance information for connections to the JDBC data sources used by the WebLogic server:

FailuresToReconnectCount The number of times that the connection pool failed to reconnect to a data store. ConnectionDelayTime The average time that was required to connect to a connection pool. ActiveConnectionsCurrentCount The current number of active connections in a JDBC connection pool. ActiveConnectionsHighCount The highest number of active connections in a JDBC connection pool.	LeakedConnectionsCount The total number of connections that have been checked out of, but not returned to, the connection pool. CurrCapacity The current number of database connections in the JDBC connection pool. NumAvailable The number of available sessions in the session pool that are not currently being used. WaitingForConnectionCurrentCount The current number of requests that are waiting for a connection to the connection pool.

FailuresToReconnectCount
The number of times that the connection pool failed to reconnect to a data store.
ConnectionDelayTime
The average time that was required to connect to a connection pool.
ActiveConnectionsCurrentCount
The current number of active connections in a JDBC connection pool.
ActiveConnectionsHighCount
The highest number of active connections in a JDBC connection pool.

LeakedConnectionsCount
The total number of connections that have been checked out of, but not returned to, the connection pool.
CurrCapacity
The current number of database connections in the JDBC connection pool.
NumAvailable
The number of available sessions in the session pool that are not currently being used.
WaitingForConnectionCurrentCount
The current number of requests that are waiting for a connection to the connection pool.

Enterprise JavaBean Metrics

The following metrics contain information about the Enterprise JavaBeans (EJBs) that are running on the WebLogic server:

AccessTotalCount The total number of times an attempt was made to get an EJB instance from the free pool. BeansInCurrentUseCount The number of EJB instances in the free pool which are currently in use. CachedBeansCurrentCount The total number of EJBs that are in the execution cache. ActivationCount The number of EJBs that have been activated.	PassivationCount The total number of EJBs that have been removed from the execution cache. CacheAccessCount The total number of that an attempt was made to access an EJB from the execution cache. CacheMissCount The total number of times that an attempt to access an EJB from the execution cache failed.

AccessTotalCount
The total number of times an attempt was made to get an EJB instance from the free pool.
BeansInCurrentUseCount
The number of EJB instances in the free pool which are currently in use.
CachedBeansCurrentCount
The total number of EJBs that are in the execution cache.
ActivationCount
The number of EJBs that have been activated.

PassivationCount
The total number of EJBs that have been removed from the execution cache.
CacheAccessCount
The total number of that an attempt was made to access an EJB from the execution cache.
CacheMissCount
The total number of times that an attempt to access an EJB from the execution cache failed.

Other Metrics

The following metrics contain information about the Java Virtual Machine (JVM), connections, requests, transactions, and servlets that are associated with the WebLogic server:

HeapSizeCurrent The amount of memory, in bytes, that is in the WebLogic server’s JVM heap. HeapFreeCurrent The current amount of free memory, in bytes, that is in the WebLogic server’s JVM heap. OpenSocketsCurrentCount The current number sockets on the server that that are open and receiving requests. AcceptBacklog The number of requests that are waiting for a TCP connection. ExecuteThreadCurrentIdleCount The number of threads in the server’s execution queue that are idle or which are not being used to process data.	PendingRequestCurrentCount The number of pending requests that are in the server’s execution queue. TransactionCommittedTotalCount The total number of transactions that have been processed by the WebLogic server. TransactionRolledBackTotalCount The total number of transactions that have been rolled back. InvocationTotalCount The total number of times that a servlet running on the WebLogic server was invoked.

HeapSizeCurrent
The amount of memory, in bytes, that is in the WebLogic server’s JVM heap.
HeapFreeCurrent
The current amount of free memory, in bytes, that is in the WebLogic server’s JVM heap.
OpenSocketsCurrentCount
The current number sockets on the server that that are open and receiving requests.
AcceptBacklog
The number of requests that are waiting for a TCP connection.
ExecuteThreadCurrentIdleCount
The number of threads in the server’s execution queue that are idle or which are not being used to process data.

PendingRequestCurrentCount
The number of pending requests that are in the server’s execution queue.
TransactionCommittedTotalCount
The total number of transactions that have been processed by the WebLogic server.
TransactionRolledBackTotalCount
The total number of transactions that have been rolled back.
InvocationTotalCount
The total number of times that a servlet running on the WebLogic server was invoked.
