Easy WebSphere MonitoringEasy WebSphere Monitoring

  • up.time monitors ensure availability of your critical WebSphere application servers
  • up.time's Alerts will keep you aware of potential user experience and transaction performance problems
  • Reports and 3-D graphs will help you understand the correlation between system performance and application server behavior
  • Quickly profile and diagnose application/database issues before they become serious
  • Use up.time in Q/A and Development to see how your applications will behave in the real world

Screenshots


WebSphere Report

WebSphere Report

Click here to view

Why is up.time your answer for monitoring WebSphere?

Reports, Graphs, and Alerts detect WebSphere problems before they affect your end users or impact service levels. up.time will always let you know when your application response time degrades in any way.

Quickly identify potential performance problems in your J2EE environment by combining up.time's detailed system performance metrics with connection pool, JVM, EJB, and servlet metrics.

up.time is ideal for characterizing the behavior of applications in WebSphere in a development/QA environment; and then how they perform once deployed in a production environment.

WebSphere Support in

enables you to monitor the performance and health of J2EE/Java applications that are running on a WebSphere server. currently supports versions 5.x and 6.x of WebSphere Application Server on any platform.

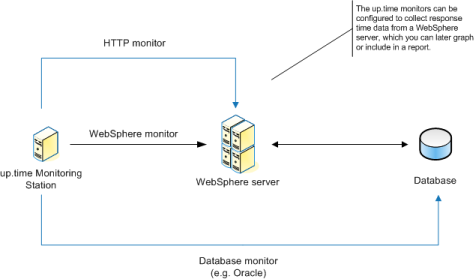

You can now identify correlations between system performance and the J2EE application server, track end-user and database response times, as well as a number of other statistics, for a WebSphere server. The diagram below shows how you can profile the many components of a J2EE environment and analyze the performance data to identify tuning opportunities, possible issues with application code, end-user response time problems, and database throughput.

WebSphere monitoring

Performance Counters

In addition to the WebSphere metrics that collects, detailed system level performance metrics are also available. This enables you to analyze system compute performance, memory usage, disk and network performance, and then relate underlying system behavior to specific metrics within WebSphere. You can also use the information that up.time collects to generate reports that chart the historical performance of the server and the applications that are running on it.

EJB Counters

The following counters contain information about the Enterprise JavaBeans (EJBs) that are running on the WebSphere server:

  • CreateCount

    The number of times that the Enterprise JavaBeans that are running on the server were created.

  • RemoveCount

    The number of times that the EJBs were removed.

  • PassivateCount

    The number of times that EJBs were removed from the cache. Note that passivation preserves the state of the EJBs on the disk.
  • MethodCallCount

    The total number of method calls that were made to the EJBs.

  • MethodResponseTime

    The average response time, in milliseconds, on the bean methods.

Connection Pool Counters

The following counters contain performance information for JDBC connections to the data sources used by the WebSphere server:

  • PoolSize

    The size of the connection pool to the data source.

  • FreePoolSize

    The number of free connections in the pool.

  • PercentUsed

    The percentage of the connection pool that is currently in use.

  • WaitTime

    The average time, in milliseconds, that a connection is used. The average time is the difference between the time at which the connection is allocated and the time at which it is returned.
  • CreateCount

    The total number of connections that were created.

  • CloseCount

    The total number of connections that were closed.

  • WaitingThreadCount

    The number of threads that are currently waiting for a connection.

  • UseTime

    The average time, in milliseconds, that a connection is used. The average use time is the difference between the time at which the connection is allocated and that time at which it is returned.

Java Virtual Machine Counters

The following counters contain performance information for the Java Virtual Machine (JVM) that is running on a WebSphere server:

  • cpuUsage

    The percent of CPU resources that were used since the last query.

  • HeapSize

    The total amount of memory that is available for the JVM.
  • UsedMemory

    The amount of memory that is being used by the JVM.

Transaction Counters

The following counters contain information about WebSphere global transactions (ones that span multiple resource managers):

  • ActiveCount

    The number of global transactions which are concurrently active.

  • CommittedCount

    The total number of global transactions that have been committed.
  • RolledBackCount

    The total number of global transactions that have been rolled back.

Other Counters

The following counters contain information about the servlets that are running on the WebSphere server:

  • LiveCount

    The number of servlet sessions that are currently cached in memory.

  • PoolSize

    The average number of threads in the servlet connection thread pool.
  • TimeSinceLastActivated

    The difference, in milliseconds, between the previous and current access time stamps of a servlet session. This counter does not include session time out values.
